AX81 ELITE + ATOM B550

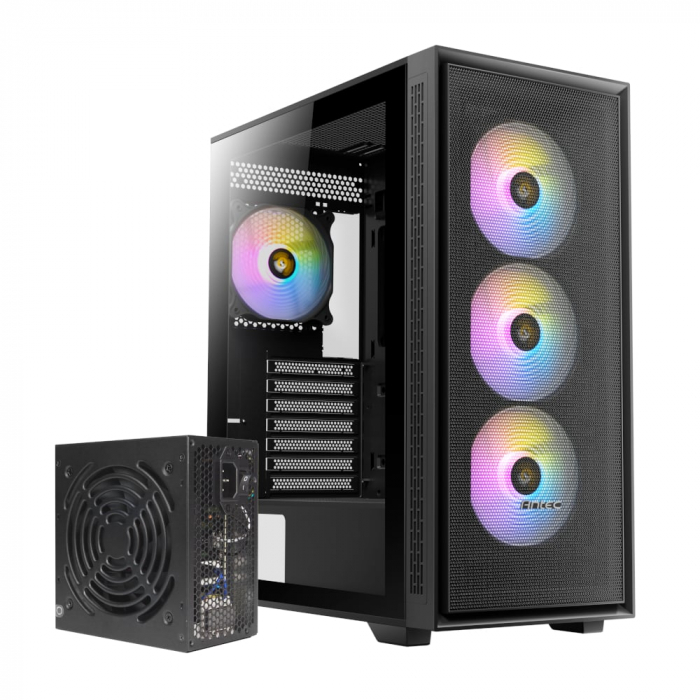

The Antec AX81 ELITE ATX ARGB Mid-Tower Gaming Chassis and Atom 550W Power Supply bundle is a great way to bring some life to your existing PC build or a great way to start a new one.

The Antec AX81 Elite represents the peak of design and cooling excellence for your gaming system. Its eye-catching design is complemented by exceptional cooling performance, making it a true powerhouse. The full-view tempered glass side panel provides an uninterrupted view of your gaming masterpiece, and the ability to attach 8 x 120mm fans at the same time assures ideal airflow. The large-area mesh front panel boosts airflow even further, collaborating with the pre-installed 4 x 120mm ARGB fans to effectively drain heat and maintain appropriate temperatures.

Antec’s new generation of Atom Bronze power supplies is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, and a quiet 120 mm silent fan. The 120mm silent fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of reliable operation. The Atom B550 utilizes Active PFC and provides efficiency during max and low loads – living up to the performance standards that we are known for. For safety, the CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. The Antec Atom B550 80PLUS Bronze ATX Power Supply is the power supply you won’t want to miss out on.

FEATURES:

• High-Airflow & Powerful Heat Dissipation
• Tempered Side Glass Panel
• Massive Minimalist Mesh Front Panel
• Pre-installed 4 x 120mm ARGB fans
• ATX Motherboard Support
• 550W Output
• 80PLUS® BRONZE Certified – To reduce your electricity bill.
• CircuitShield™ – Industrial grade protections: OPP/OVP/UVP/SCP
• 120mm Silent Fan

SPECIFICATIONS:

• Antec AX81 ELITE ATX ARGB Mid-Tower Gaming Chassis
• Form Factor: Mid Tower
• Materials: Steel + Plastic
• Mainboard Support: E-ATX(≤272mm), ATX, Micro-ATX, ITX
• Front Access & Controls: Power, Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, Headphone / Mic Combo Jack
• Side Panel: 4mm Tempered glass
• Drive Bays: Expansion Slots: 7, 3.5″ /2.5″- 2/1, 2.5″ – 2
• Fan:
• Front: 3 x 120mm / 3 x 140mm
• Top: 2 x 120mm / 2 x 140mm
• Power Supply Shroud: 2 x 120mm
• Rear: 1 x 120mm
• Included Fan(s): 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear
• Radiator Support:
• Front: 120 / 140 / 240 / 280 / 360mm
• Top: 120 / 140 / 240 / 280mm
• Rear: 120mm
• Clearance:
• Max GPU Length: ≤ 320mm
• Max CPU Cooler Height: ≤ 160mm
• Max PSU Length: ≤ 175mm(with HDD), ≤ 365mm(without HDD)
• Dust Filter: Top / Bottom
• Product Dimensions: 42.1 x 21 x 48.5 cm
• Product Weight: 6000g
• Antec Atom B550 Power Supply
• Input: 200-240Vac, 6.3A, 50Hz
• Output: +3.3V/15A, +5V/18A, +12V/36.2A, -12V/0.3A, +5Vsb/2.5A
• Total Output: 550W
• Connectors:
  • 24-Pin Main Connector x1
  • 8(4+4) Pin EPS12V x1
  • 8(6+2) Pin PCI-E x2
  • SATA x5
  • Molex x3
• Cooling: 120mm Silent Fan
• Certification: 80PLUS® BRONZE

WHAT’S IN THE BOX:

• Antec AX81 ELITE ATX ARGB Mid-Tower Gaming Chassis – Black x1
• Antec Atom B550 80PLUS Bronze ATX Power Supply – Black x1
